Data Flows

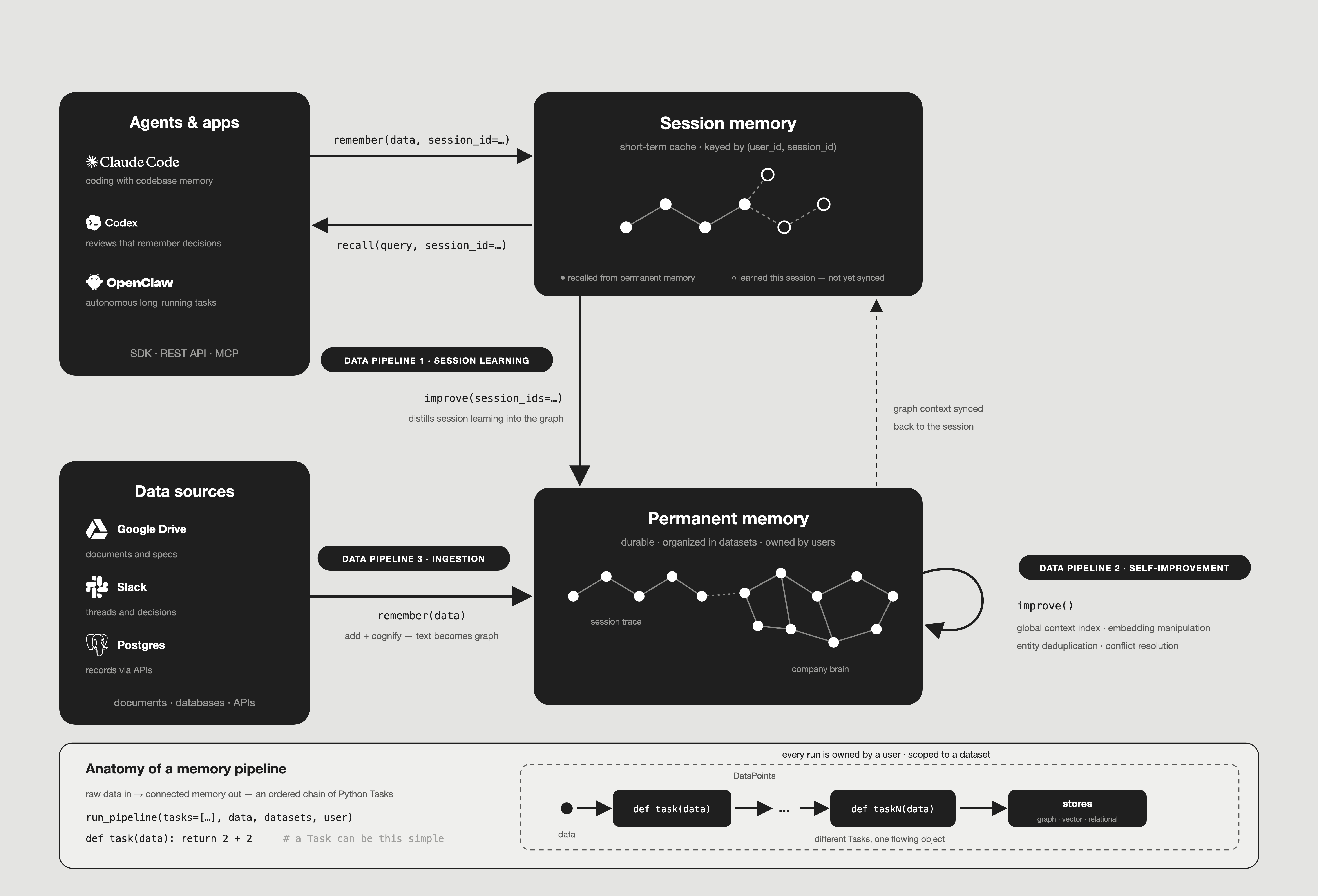

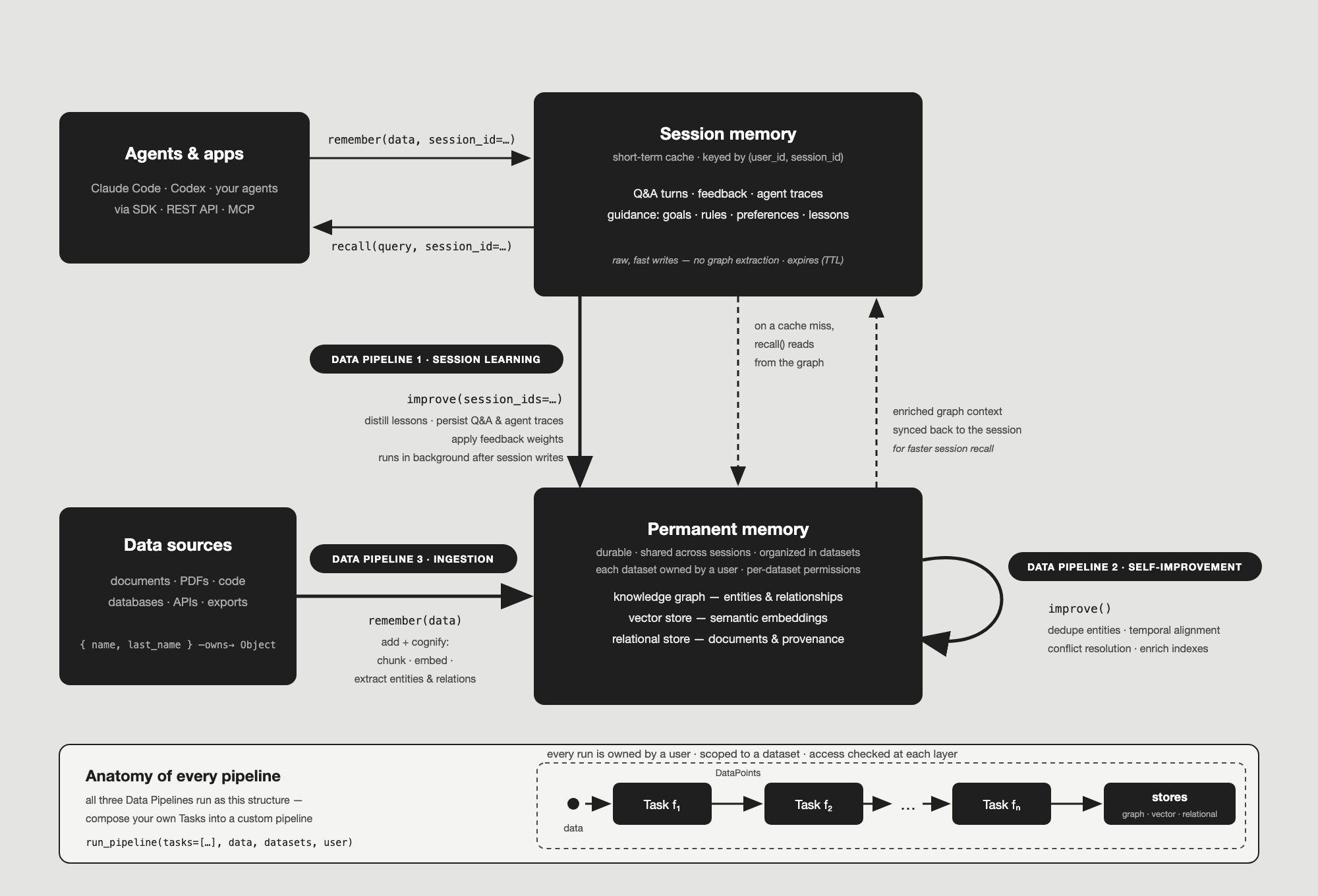

The Architecture page explains where memory lives. This page explains how memory moves: three separate Cognee pipelines carry data between your agents, short-term session memory, and the permanent knowledge graph — and all three are built from the same Task-based structure you can use for your own pipelines.

​

Data Pipeline 1 — Session learning

Agents — Claude Code coding with codebase memory, Codex reviews that remember decisions, an OpenClaw agent on a long-running autonomous task — write conversation turns, feedback, traces, and guidance into session memory with remember(data, session_id=...). These writes are raw and fast — no chunking, no graph extraction — which is exactly why they don’t reach the permanent graph on their own. In the diagram they are the hollow nodes in the session graph: learned this session, not yet synced. The session-learning pipeline is what bridges them. improve(session_ids=[...]) distills gated session guidance into curated lesson documents, persists session Q&A and agent traces into the graph, and applies feedback weights so graph elements that helped produce well-rated answers become more influential in later retrieval. With self_improvement=True (the default for session writes), this pipeline starts automatically in the background; with self_improvement=False, session content stays in the cache until you run improve() yourself.

​

Data Pipeline 2 — Self-improvement

Once data is in the permanent graph, the self-improvement pipeline enriches it in place. Running improve() on a dataset adds derived retrieval structures on top of the existing graph — for example triplet indexes, and optionally dataset-level bucket and root summaries via the global context index — so later recall works better without re-ingesting anything. This pipeline is also how permanent memory feeds back into session learning: after enrichment, new graph relationships can be synced back into the session cache as readable context — the filled nodes in the session graph above are exactly this recalled core — making future session recall faster and better grounded.

​

Data Pipeline 3 — Ingestion

Calling remember(data) without a session_id — on anything from Google Drive documents to Slack threads to Postgres records — writes straight to permanent memory. Under the hood this runs the Add + Cognify pipeline: documents are loaded and chunked, entities and relationships are extracted into the knowledge graph, embeddings are indexed in the vector store, and provenance is tracked in the relational store.

​

How the two memories meet at read time

Retrieval ties the flows together. recall(query, session_id=...) checks the session cache first; on a cache miss it falls through to the permanent knowledge graph, and results are tagged with the _source they came from. Combined with the sync-back from Data Pipeline 2, the session and the graph continuously exchange context in both directions.

​

Anatomy of a memory pipeline

All three flows above — and any pipeline you build yourself — share one structure: a Pipeline is an ordered sequence of Tasks, where each Task transforms data and passes DataPoints to the next until results land in the stores. In practice a Task is just a Python function — plain function, coroutine, or generator — wrapped in Task(...) so Cognee can batch it, handle its errors, and stream its output into the next step. Even something as trivial as def task(data): return 2 + 2 is a valid Task; the power comes from chaining them over the same flowing object. The task1 → … → taskN chain in the diagram is exactly how the built-in operations run internally, with tasks like extract_chunks_from_documents, extract_graph_from_data, and add_data_points. Every run is owned: it executes on behalf of a user against a dataset, and user access to datasets and files is verified at each layer. That means the built-in pipelines and your custom ones follow the same rules — swap in your own Tasks, give the pipeline a unique name, and it runs with the same ownership, status tracking, and per-dataset serialization as the defaults.
